If you’ve ever wondered what goes on inside a UK plug, you’re not alone. While we often take them for granted, plugs are a vital part of electrical safety – and understanding how they’re wired is an essential skill for anyone working with appliances, wanting to be able to safely change a plug or fuse, or has responsibility for workplace safety. In this guide, we’ll walk you through a plug wiring diagram, explaining every component, from the wires and fuse to the cable grip and connections. Whether you’re a facilities manager, technician, or simply keen to improve your knowledge, this blog will help you make sense of the wires in plug diagrams with labels and colours – and show how to wire a plug properly and safely.
Let’s take a look at a basic plug in wire diagram – like the one shown below. A standard UK plug (BS 1363) has three wires, each with a different colour and function, and a fuse to protect the appliance and user.

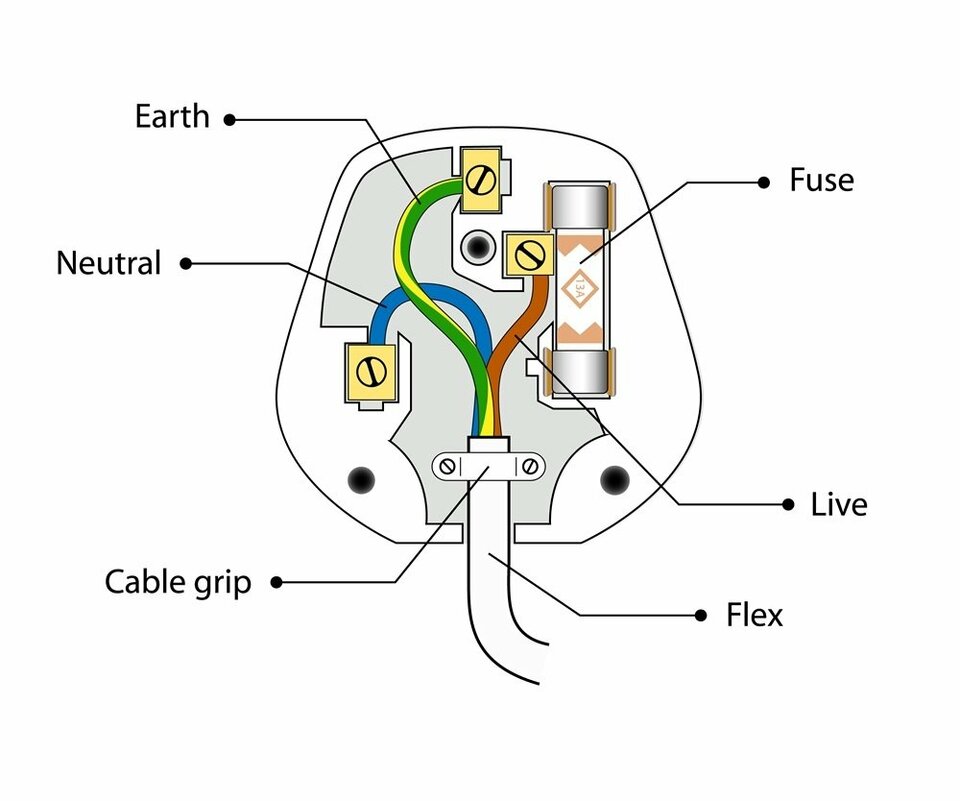

This ‘wires in a plug’ diagram shows the internal structure of a UK 3-pin plug, including key components: • live wire (brown)
• neutral wire (blue)
• earth wire (green/yellow)
• fuse • cable grip
• flex (the cable)
Let’s explore each part and its role.
Live wire (brown)
The live wire is responsible for carrying current to the appliance from the power source. In the plug wiring diagram, it connects to the right-hand terminal (typically marked with an “L”) and is always coloured brown in modern UK wiring systems.
Because it’s the most dangerous wire – carrying 230V of electricity – it’s essential this connection is properly tightened and insulated. A loose live wire is a significant hazard and could result in electric shock or fire.
Neutral Wire (Blue)
The neutral wire carries electricity away from the appliance and completes the circuit. In the wires in plug diagram with labels and colours, it connects to the left-hand terminal (usually marked “N”).
The blue neutral wire is just as important as the live wire – although it carries less risk, it’s essential for returning the electrical current safely.
Earth wire (green and yellow)
The earth wire is a safety feature. It prevents electric shock by directing any fault current away from the user and into the ground. It connects to the top terminal in the plug (marked with the earth symbol ⏚) and is always green and yellow striped.
Note: Some small, double-insulated appliances (like phone chargers) may not require an earth wire and will only have two wires.
Fuse
The fuse protects the appliance and user in the event of a power surge or fault. It is connected in series with the live wire and breaks the circuit if the current exceeds a safe level.
Types of fuses used in plugs:
Always replace a fuse with one of the same rating. Using the wrong fuse may result in overheating or failure to cut off in an emergency.
Cable grip
The cable grip (or cord grip) is found at the bottom of the plug and holds the outer sheath of the flex firmly in place. Its job is to prevent the internal wires from being pulled loose if the cable is tugged or stretched.
In any proper plug wiring diagram, the cable grip is shown clamping the outer insulation – not the inner coloured wires themselves.
Insulation and Safety
Each of the three wires inside a plug is individually insulated in its colour-coded plastic coating. The entire flex is also protected by a tough outer layer, shielding the internal wires from wear and damage.
When wiring a plug, make sure:
While plug wiring diagrams can make things seem simple, it’s easy to make mistakes – especially if you’re in a hurry. Common issues include:
• wires inserted into the wrong terminals
• loose or unscrewed connections
• damaged cable or insulation
• using inappropriate plug in wire diagram references (e.g., from outdated wiring colours).
If a plug shows signs of damage, overheating, or exposed wires, it should be replaced or rewired. Always disconnect the plug from the mains before opening it. If you’re unsure, a qualified technician or compliance partner should be consulted.
Electrical safety isn’t just about getting the wiring right – it’s about ensuring every appliance, socket, and circuit meets regulatory standards. At phs Compliance, we provide professional support to help your business stay on top of its electrical responsibilities.
From PAT testing and fixed wire inspections to appliance servicing and remedial work, our services are designed to keep your employees, clients and visitors safe, reduce downtime, and ensure compliance with UK legislation such as the Electricity at Work Regulations 1989.
Wiring a plug might seem basic, but it’s a vital skill that underpins broader workplace safety. Understanding the plug wiring diagram, fuse ratings, and wire colours isn’t just about technical knowledge—it’s about protecting your team and meeting your legal duties.
At phs Compliance, we offer tailored electrical safety solutions for businesses of every size. Whether you’re managing a school, office, retail space or industrial site, our qualified engineers are here to help you plug any compliance gaps – literally and figuratively!
Contact us todayto learn more about our electrical testing services, training, and support. We’ll help you keep your workplace safe, compliant, and ready for anything.
